Recommended projection distance: 1–30 ft
Projection distance is measured from the projector lens to the receiving surface. Visibility depends on ambient light, projected image size, surface color and installation angle. Share your site photos, distance and desired image size before ordering so we can review suitability.
80W outdoor logo projection
This gobo projector projects artwork from a custom glass gobo. Choose the available projection style and plug option to suit your installation.
What is included?
Each projector includes one custom single-color E-size (OD 37.5 mm / image area 28 mm) glass gobo. Send your artwork for review before production.
Check your installation before ordering
Tell us the distance from the projector to the surface, the desired image size, the surface color, and the surrounding light level. Projection distance and image diameter are different measurements. Suitability should be checked for your installation rather than selected by wattage alone.

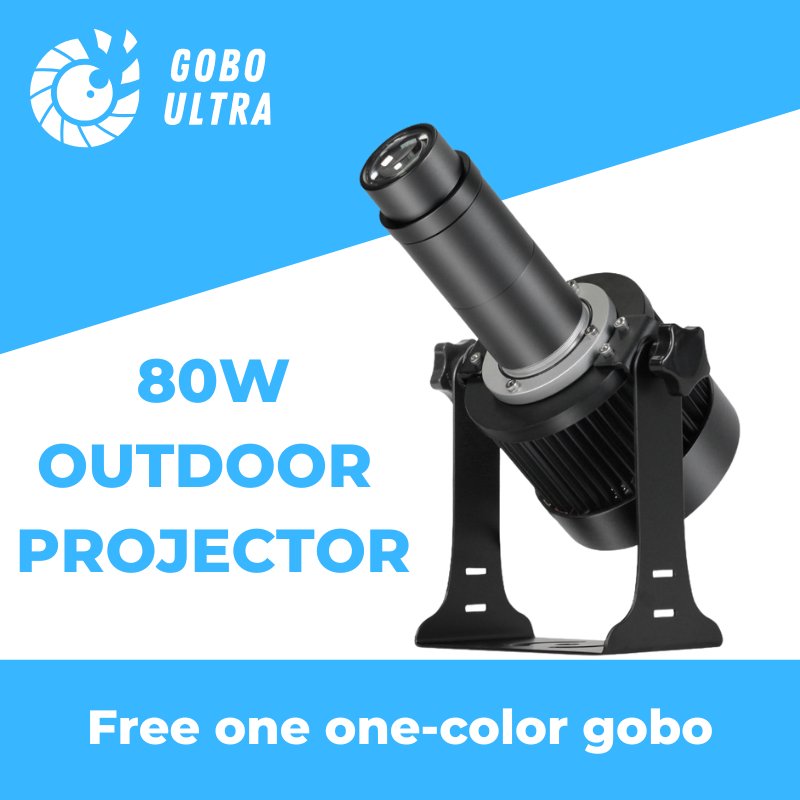

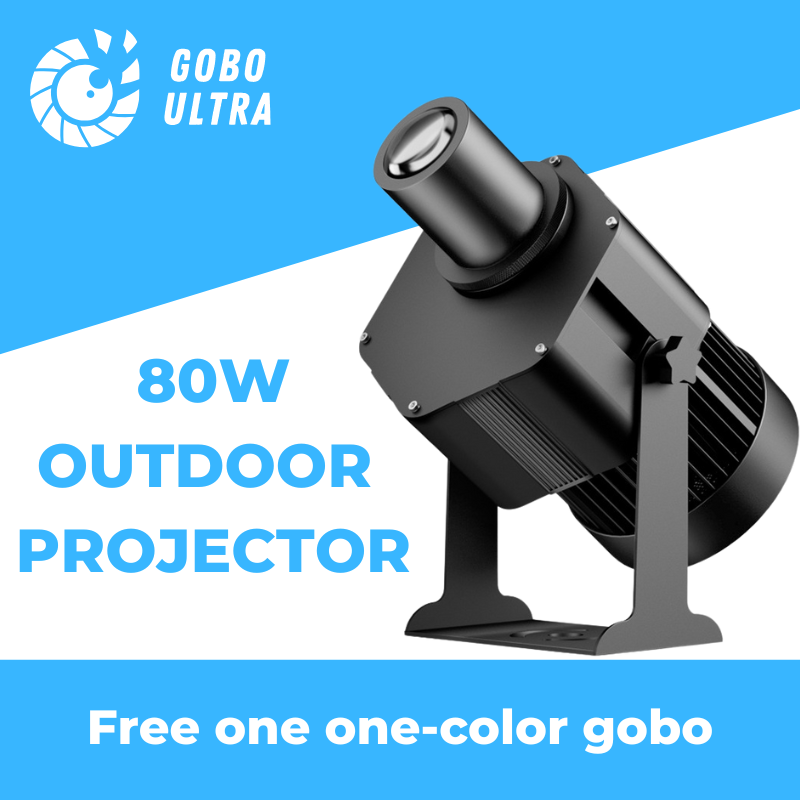

Goboultra® GoboUltra 80W Outdoor Waterproof Projector
| 🔧 Core Specifications |
📦 Package Details |
| Brand: Goboultra
|
Net Weight: 2.9kg / 3.2kg |
| Body Material: Aircraft-grade Aluminum + Optical Lens |
Lumen Output: 7800LM |
| Heat Management: Fan Cooling System
|
Lens: 20° (1:0.35) |
| Surface Finish: Anti-Corrosion Anodized Black |
Projection Distance Reference: 16~32ft |
| Voltage: AC 110V-240V / 50HZ |
Light source life: 50000 hours |
| Chip power: 80W |
Usage time: Less than 20 hours per day |
| Color Temp: 8000K Daylight White |
GOBO size: E size OD 37.5mm / ID 28mm |
| 🌡️ Environmental Ratings |
| IP Protection: IP65 Waterproof |
Operating Range: -25℃~55℃ (-13°F~131°F) |
| Humidity Tolerance: <80% RH |
| 🛡️ Warranty |
- 12-Month Manufacturer Warranty
- Support: support@goboultra.com
|
Production & U.S. Shipping
Production typically takes about 1 day after payment has been received and the final design has been approved.
For U.S. orders, standard shipping takes 5–7 business days after dispatch. FedEx delivery is available in as little as 3 days after dispatch at an additional cost. Shipping fees apply to all orders. Production time is separate from transit time; delivery estimates are not guaranteed.
Replacement gobos and size information
This model uses E-size (OD 37.5 mm / image area 28 mm) gobos. For another design, see custom replacement glass gobos. Read the gobo size guide before ordering for another projector model.
Artwork and ordering help
Email your artwork and installation details to support@goboultra.com before final approval. See our shipping policy and returns and warranty policy for the applicable terms.
